Lighter weight. Potent power. Vivid acceleration.

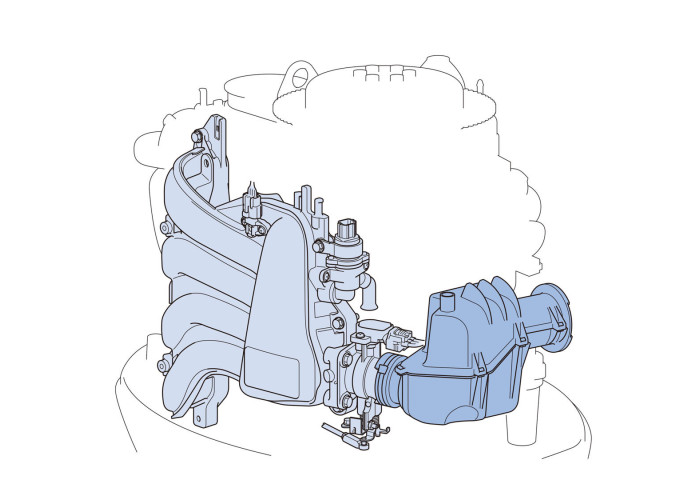

Our 4-stroke technology offers unmatched performance – thanks to a 16-valve engine with Single Overhead Camshaft (SOHC) for vivid acceleration, advanced intake and exhaust system designs – and Yamaha's unique multi-point EFI (Electronic Fuel Injection)
A range of convenient features – including PrimeStart™, a high-output alternator, Digital Network Gauges and Yamaha's Wide Range Power Trim & Tilt system – gives you the confidence that you're always in full control.
Enige type | 4-stroke |
Displacement | 1,832cm³ |
No. of cylinder/configuration | 4/In-line, 16-valve, SOHC |
Bore x stroke | 81.0 mm x 88.9 mm |
Prop shaft output at mid range | 73.5 kW / 5,500 rpm |
Full throttle operating range | 5,000 - 6,000 rpm |
Lubrication system | Wet sump |
Fuel Induction System | EFI |
Ignition / advance system | TCI |
Starter system | Electric with Prime Start™ |
Gear ratio | 2.15 (28:13) |
Transom height | L:516 mm X:643mm |
Fuel tank capacity | - |
Oil pan capacity | 3.2liter |
Weight without propeller | 162kg - 166kg |
Control | Remote control |
Trim & Tilt method | power Trim & Tilt |
Light coil/Alternator | 12V -35Awith rectifier/regulator |
Engine immobilizer | YCOP optional |

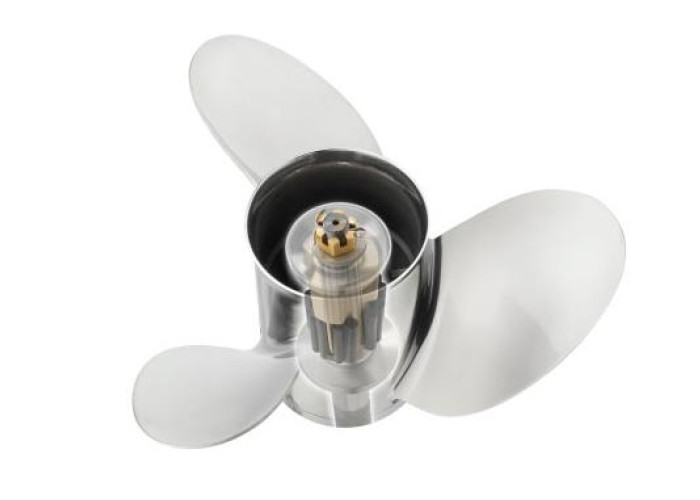

Propeller | Optional |

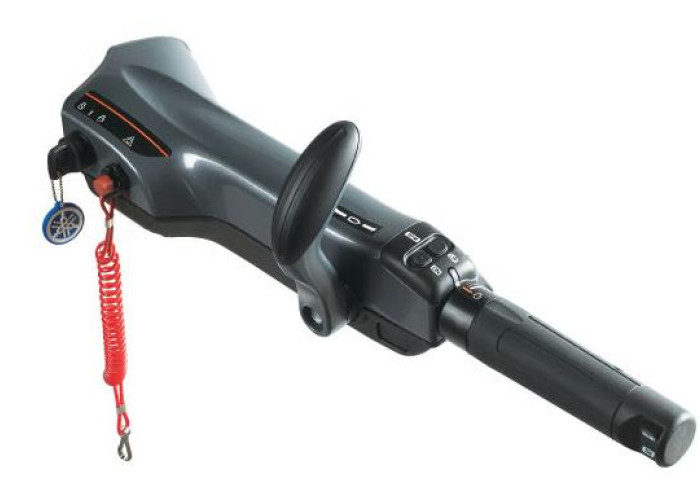

Variable trolling Speed | With DN Gauges or m-f tiller handle |
Shift Dampener System (SDS) | Optional |
