Delivering the best power-to-weight in the class.

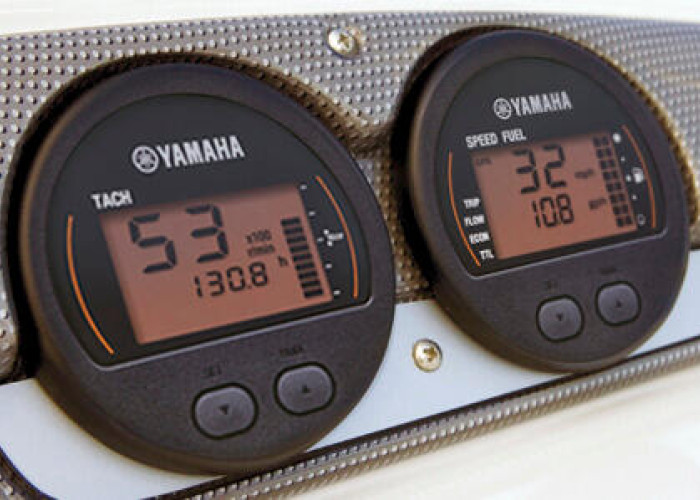

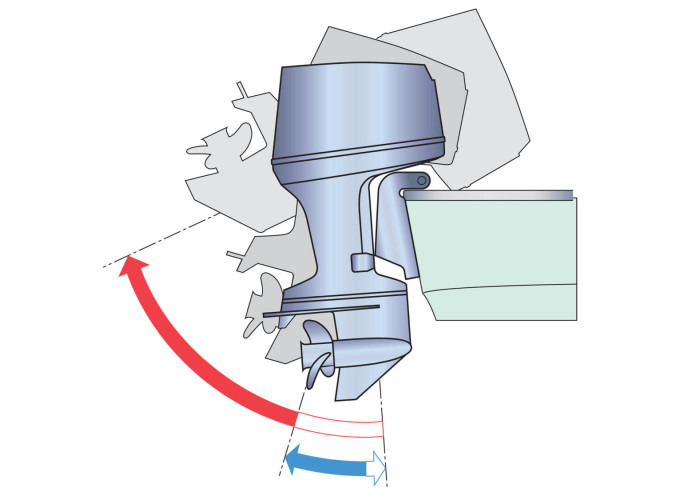

Not only is the engineering impressive - this is a 1.8 litre, 16 big-valve, in-line 4-cyl DOHC 4-stroke - but it's blended with a host of electro/technical features to make life easier: Compatibility with our optional Digital Network System, Wide Range Power Trim & Tilt with Tilt angle limiter and Y-COP® remote security system (both optional) to name but a few.
The efficiency of our well proven EFI systems and other new combustion technologies ensure the utter dependability of this outstanding Yamaha engine.
Enige type | 4-stroke |
Displacement | 1,832cm³ |
No. of cylinder/configuration | 4/In-line, 16-valve, DOHC |
Bore x stroke | 81.0 mm x 88.9 mm |
Prop shaft output at mid range | 84.6 kW / 5,800 rpm |
Full throttle operating range | 5,300 - 6,300 rpm |
Lubrication system | Wet sump |
Fuel Induction System | EFI |
Ignition / advance system | TCI |
Starter system | Electric with Prime Start™ |
Gear ratio | 2.15 (28:13) |
Transom height | L:516 mm X:643mm |
Fuel tank capacity | - |
Oil pan capacity | 3.2liter |
Weight without propeller | 173kg - 177kg |
Control | Remote control |
Trim & Tilt method | Power Trim & Tilt |
Light coil/Alternator | 12V -35Awith rectifier/regulator |
Engine immobilizer | YCOP optional |
Propeller | Optional |
Counter Rotation Model | Available (ETX) |
Variable Trolling Speed | With DN Gauges or m-f tiller handle |
Shift Dampener System (SDS) | Optional |
