Fun 4-cylinder excitement
This unit offers fresh styling and modern design, aligning the aesthetics of the Premium and High-Power segments. The design cues and graphics on this engine are all pointers to the exciting technology that lives just inside.

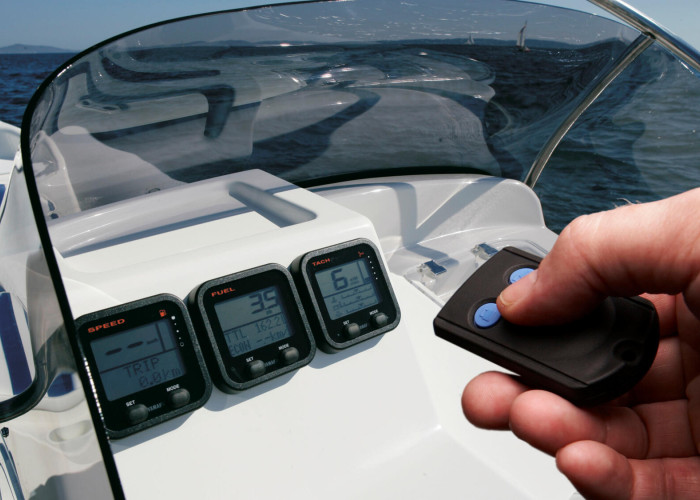

The 150hp engine benefits from enhanced connectivity for greater control and confidence, linking with Helm Master EX®, Yamaha’s latest CL5 gauge and the latest Drive-by-Wire throttles for smooth shifting, with single and multiple engine throttles available.
Enige type | 4-stroke, DOHC, In-Line Four-Cylinder, 16-valves |
Displacement | 2,785cc |
No. of cylinder/configuration | L4 |
Bore x stroke | 96.0 x 96.2 |
Prop shaft output at mid range | 150hp @ 5,500rpm |
Full throttle operating range | 5,000 - 6,000rpm |
Lubrication system | Wet sump |
Fuel Induction System | EFI |
Ignition / advance system | Electronic ignition (TCI) |
Starter system | Electronic ignition (TCI) |
Gear ratio | 26/14 1.86 |
Transom height | L:516mm X:643mm |
Oil pan capacity | 4.5 L |
Weight without propeller | 242kg - 244kg |
Control | Drive By Wire (DBW) |

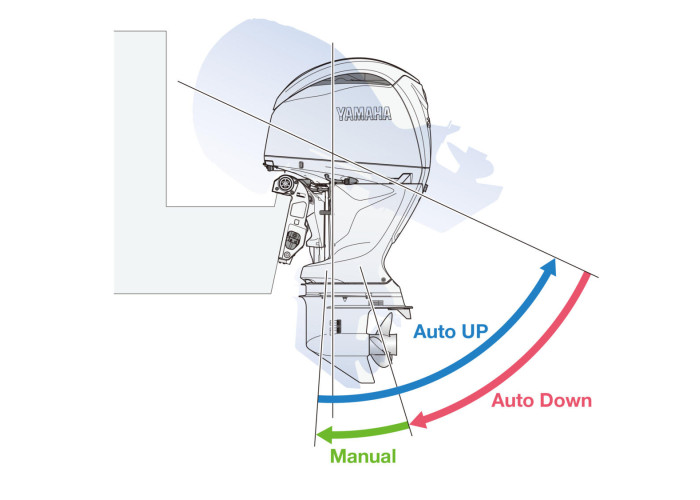

Trim & Tilt method | Power Trim & Tilt |
Light coil/Alternator | 50A (Charging capacity 31A) |

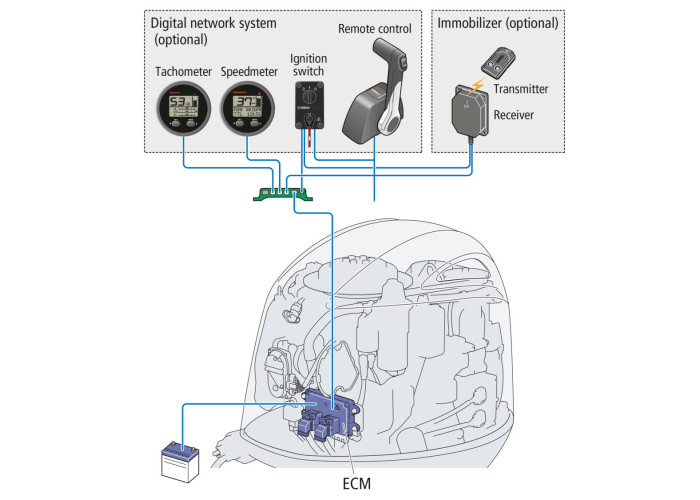

Engine immobilizer | YCOP |
Propeller | Optional |
Counter Rotation Model | Available |
Shallow Water Drive | Standard |
Tilt limitter | Optional |
Shift Dampener System (SDS) | Optional |
