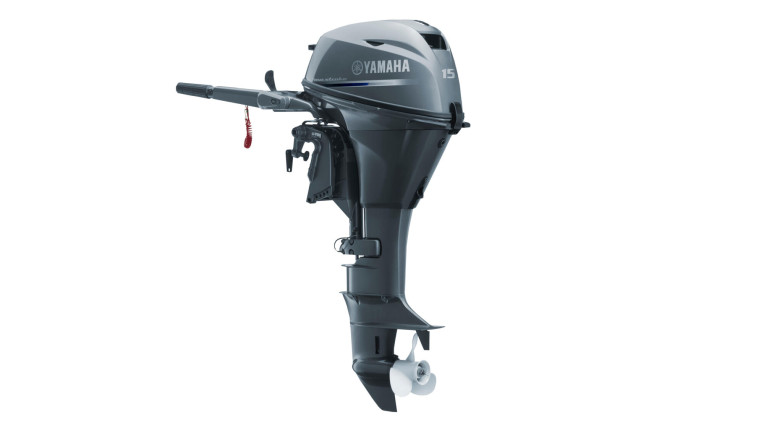

Small-engine convenience, big-engine performance
This versatile, twin-cylinder 4-stroke combines power and responsiveness - and delivers a super-smooth ride. Outstanding fuel economy also means that you're being kinder to the environment, with exhaust emissions cut to a minimum.
Enjoy too, the many extras that only a Yamaha outboard delivers. Benefits like computer-controlled ignition, a special light-load starting system, a water-cooled fuel pump, and a large-volume silencer – all normally only found on larger engines. For commercial, professional or leisure use, it adds up to a winning formula.
Enige type | 4-stroke |
Displacement | 362cm³ |
No. of cylinder/configuration | 2/In-line, SOHC |
Bore x stroke | 63.0 mm x 58.1 mm |
Prop shaft output at mid range | 11.0 kW / 5,500 rpm |
Full throttle operating range | 5,000 - 6,000 rpm |
Lubrication system | Wet sump |
Fuel Induction System | 1-Carb |
Ignition / advance system | CDI |
Starter system | Electric (E, EH, EP), Handmatig (MH) met prime start™ |
Gear ratio | 2.08 (27:13) |
Transom height | S:438 mm L:565mm |
Weight with propeller | F15CMHS: 51 kg, F15CMHL: 53 kg, F15CES: 52 kg ,F15CEL: 54 kg, F15CEHL: 56 kg, F15CEPL: 60kg |
Fuel tank capacity | separate 25 liters |
Oil pan capacity | 1.8liters |
Control | Tiller handle (MH, EH), Remote control (E, EP) |

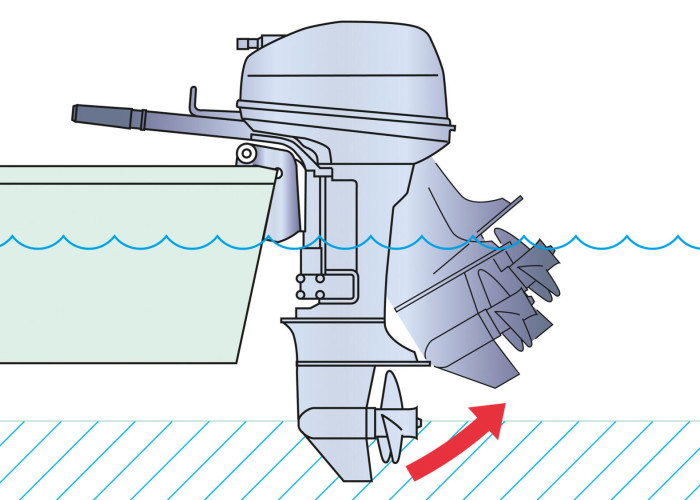

Trim & tilt method | Power Tilt (EP), Manual (MH, EH, E) |
Lighting coil / Alternator | 12V -10Awith rectifier/regulator** |
Propeller | Included |
