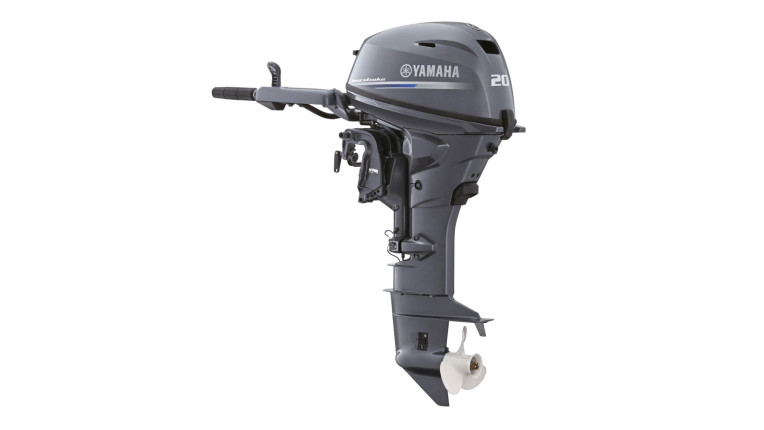

Our latest F20 - A really 'big' little portable.
The specification includes battery-less EFI and full compatibility with our Digital Network Gauges, as well as convenient new resting pads and carry handles.

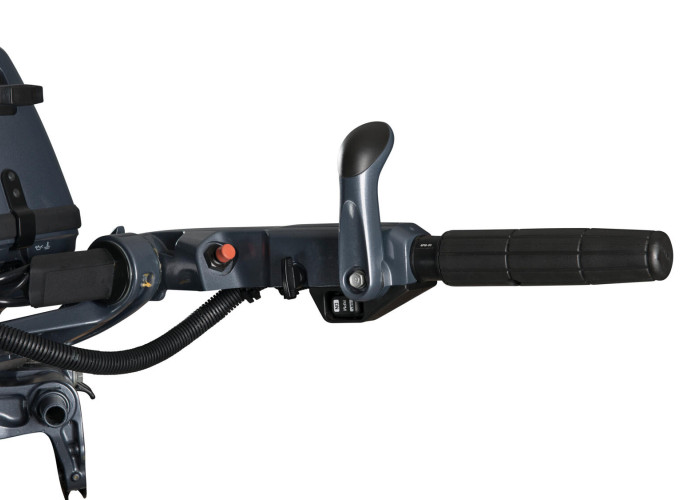

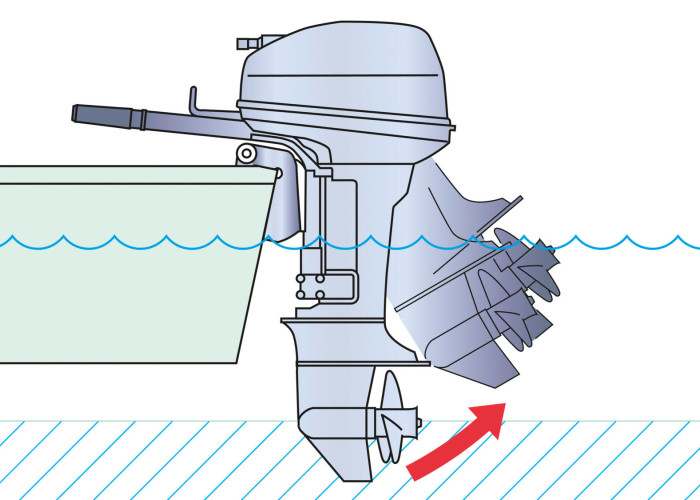

With single-lever steering friction adjustment, wide-span motor mount, high-output alternator and options of Variable Trolling Speed, Y-COP Security and Power Tilt, the F20 is a great choice for a wide range of tasks.
Enige type | 4-stroke |
Displacement | 432cm³ |
No. of cylinder/configuration | 2/In-line, SOHC |
Bore x stroke | 65.0 mm x 65.1 mm |
Prop shaft output at mid range | 14.7 kW / 5,500 rpm |
Full throttle operating range | 5,000 - 6,000 rpm |
Lubrication system | Wet sump |
Fuel Induction System | EFI |
Ignition / advance system | CDI |
Starter system | Electric/ Manual, Manueel (MH), Electric (E, EP) |
Gear ratio | 2.08 (27:13) |
Transom height | S:429 mm L:556mm |
Fuel tank capacity | separate, 25liters |
Oil pan capacity | 1.1liters |
Weight without propeller | 56kg - 63kg |
Control | Remote control (E, EP), Tiller handle (MH + WH) |
Trim & Tilt method | Power Tilt (EP), Manual Tilt (MH, E + WH) |
Light coil/Alternator | 12V -16A with rectifier/regulator |
Engine immobilizer | YCOP optional |
Propeller | Optioneel (E, EP), Included (MH, WH) |
Variable trolling Speed | With DN Gauges or m-f tiller handle |
Digital Network Gauge (6Y8/6YC) | Optional |
Steering | Tiller handle, Remote control |
