Always work or play with a powerful partner.

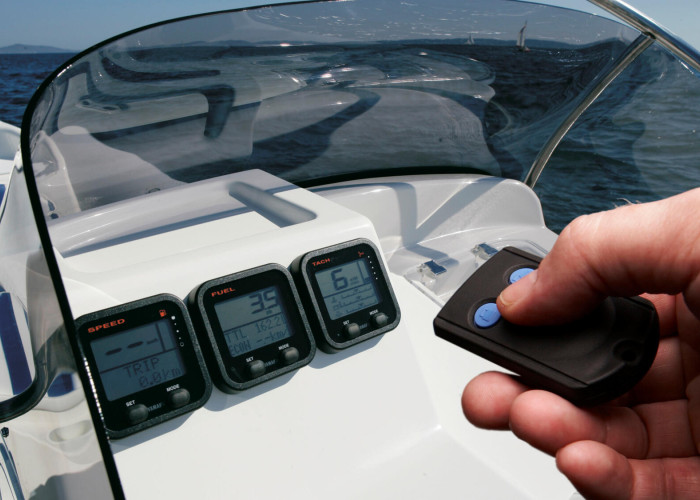

For cleaner performance, maximum fuel efficiency and easy starting, the powerful 16-valve SOHC engine features EFI (Electronic Fuel Injection) and Yamaha's unique PrimeStart™ system. Compatibility with Yamaha's Digital Network Gauges delivers precise control too.
Sleek and stylish too – your 70hp is sure to attract admiring glances from everyone - whether aboard or on the shore.
Enige type | 4-stroke |
Displacement | 996cm³ |
No. of cylinder/configuration | 4 /In-line, 16-valve, SOHC |
Bore x stroke | 65.0 mm x 75.0 mm |
Prop shaft output at mid range | 51.5 kW / 5,800 rpm |
Full throttle operating range | 5,300 - 6,300 rpm |
Lubrication system | Wet sump |
Fuel Induction System | EFI |
Ignition / advance system | TCI |
Starter system | Electric with Prime Start™ |
Gear ratio | 2.33 (28:12) |
Transom height | L:534 mm X:648mm |
Fuel tank capacity | separate, 25liters |
Oil pan capacity | 2.1liters |
Weight without propeller | 119 kg - 121 kg |
Control | Remote control |
Trim & Tilt method | Power Trim & Tilt |
Light coil/Alternator | 12V -15Awith rectifier/regulator |
Engine immobilizer | YCOP optional |
Propeller | Optional |
Variable trolling Speed | With DN Gauges or m-f tiller handle |
Shift Dampener System (SDS) | Optional |
